Water Tank Liners

Fab-Seal Industrial Liners, Inc., is a leading a manufacturer and installer of membrane lining systems and water tank liners for a wide range of industrial uses and applications.

The water tank liners produced by the industry experts at Fab-Seal are made from the highest quality materials and manufactured with extreme compatibility to most inorganic and corrosive fluids.

We offer professional design, fabrication and installation of water tank liners that can generally be installed in less than a week.

Water Tank Liners for Variety of Containment Needs

Fab-Seal Industrial Liners, Inc., offers water tank liners for most containment applications, including:

  • Clear well liners
  • Concrete Cisterns
  • Concrete tanks
  • Fiberglass tanks
  • Lagoon liners
  • Pit liners
  • Pond liners
  • Steel tanks
  • Underground vaults
  • Waste transportation container linings
  • Wood tanks

Call 800-874-0166 to speak to one of our knowledgeable industry professionals about the water tank liners available at Fab-Seal Industrial Liners, Inc.

Fab-Seal offers NSF /Ansi Standard 60 or 61 approved flexible membrane liner systems for tanks, clear wells, water vaults, chlorine, aluminum sulfate, and waste water tanks.

Water Tank Liners

Portable Water Tank

Fab-Seal Industrial Liners, Inc is NSF/Ansi Standard 60 or 61 approved!

Fab-Seal's liner systems are fabricated in our factory using dielectric sealing of the same material.


This process lets all seams have the same flexibility and strength as the sheet of material itself.

Water Tank Liners

Typical Water Storage Tank

Fab-Seal Specializes in:



What Are Leak Detection Monitors?

Leak detection monitors are valves installed into the tank wall just above the floor that can be opened on a scheduled basis to monitor the tank lining integrity.

NSF/ANSI Standard "61" Approved



Specific GravityASTM D 15051.27
Durometer(A-scale)ASTM D 67676
Tensile Strength (PSI)ASTM D 6832200 (minimum)
Elongation, %ASTM D 683400 (minimum)
100% Modulus, PSI
Elongation (PSI)ASTM D 683930 (minimum)
Low Temprature Impact, CASTM D1043-26
Volatility (%)Activated Carbon 24 Hrs 87 degrees C1.7
Water Absorption (%)ASTM D0.25

Water Tank Liner Examples

Water Tank Liners

Picture shows liner being pulled into place

Water Tank Liners

Picture shows clear well liner with Geotextile padding on floors

Water Tank LinersWater Tank Liners

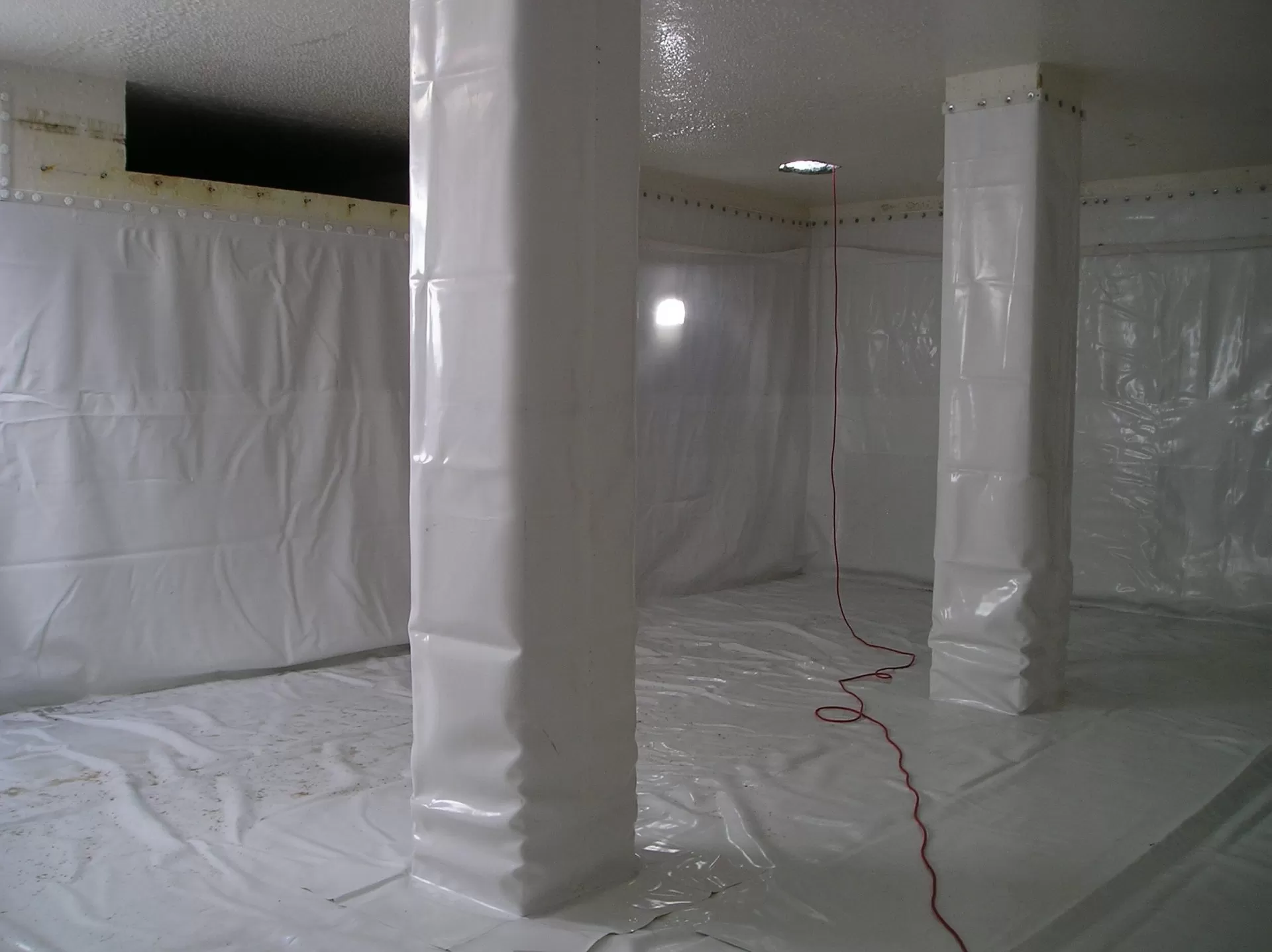

Picture shows clear well lined columns with water tight covers (100% Potable Water Containment)

Water Tank Liners

Picture shows batten strip attachment to wall of clear well
